AS/US Prefab Single Family Light Steel Frame Home With Panelized System Technology

practical and stylish residential use. Sitting on a 13m × 13m land plot, the villa boasts a total usable floor area of 193.69 square meters across two floors, featuring a compact and well-proportioned structure that suits both permanent family living and lightweight vacation housing needs. Adopting clean geometric lines and a simple modern design language, the residence delivers a neat, elegant and timeless architectural look with no redundant decoration.

The house features a user-centric spatial layout with smooth indoor circulation and complete daily functions. A spacious outdoor terrace is set at the entrance, providing a relaxing open-air area for outdoor rest and casual gatherings. Stepping into the house, you will arrive at a bright and airy central living room that serves as the core public activity area. On the left side of the living room is an independent bedroom, offering flexible accommodation space for family members or guests. On the right side lies the integrated kitchen and dining area, forming a cohesive dining and cooking zone that caters to daily family meals and small gatherings. A central staircase is arranged at the rear of the living room, providing stable and convenient vertical access to the second floor.

Floorplan:

The second floor is fully dedicated to private resting spaces with a quiet and private atmosphere. It is configured with three independent bedrooms and two functional bathrooms, fully meeting the daily accommodation needs of medium-sized families. The upper-floor space is reasonably partitioned with moderate spacing, ensuring each bedroom has independent private space and comfortable living experience. The overall layout balances practicality and comfort, highlighting the humanized design of modern residential buildings.

• Product parameters:



  Name:	Bilbao House
  Size:	13050×13010mm
  Ground floor area:	117.3sqm
  First Floor Area:	76.39sqm
  Total Area:	193.69sqm
  Model:	DPBL-26-26







Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:

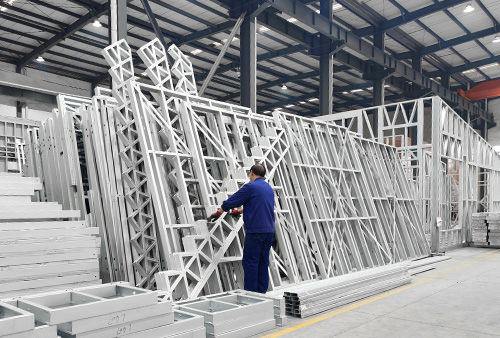

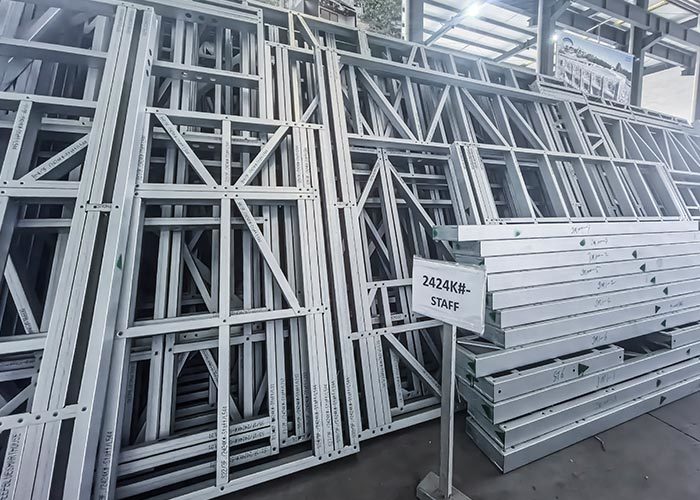

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
